ST3x8.6 – ST Shapes

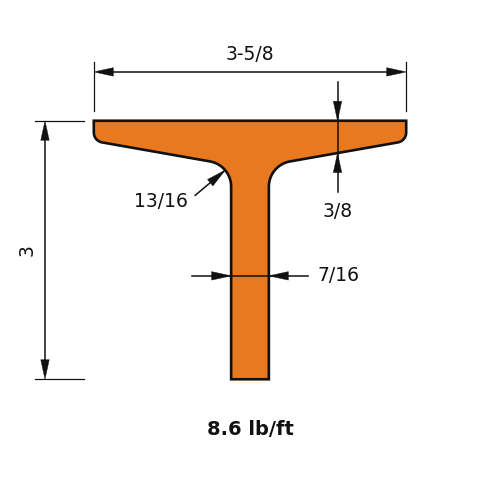

ST3x8.6 is a tee 3 in (76 mm) deep with a 3.57 in (91 mm) flange, weighing 8.6 lb/ft (12.8 kg/m).
ST shapes are structural tees split from S shapes, inheriting the tapered flange proportions of their S-shape parent. They're specified for the same general tee applications as WT and MT shapes — truss and joist chords, built-up sections — in situations where the specific proportions of a split S shape suit the design, including retrofit or matching work on structures originally built with S-shape members.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 8.6 |
| Depth of Section (in) | 3.0 |
| Width of Section (in) | 3.57 |
| Web Thickness (in) | 0.465 |
| Flange Thickness (in) | 0.359 |
| Kdet Dimension (in) | 0.8125 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 2.12 |
| Zx (in³) | 1.85 |
| Sx (in³) | 1.02 |
| rx (in) | 0.915 |
| Iy (in⁴) | 1.14 |
| Zy (in³) | 1.17 |
| Sy (in³) | 0.642 |
| ry (in) | 0.673 |
| J (in⁴) | 0.181 |
| Cw (in⁶) | 0.0772 |
| ro (in) | 1.35 |
| H (-) | 0.705 |
