ST5x12.7 – ST Shapes

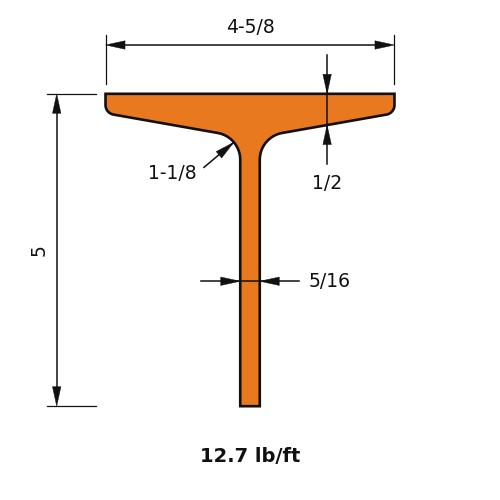

ST5x12.7 is a tee 5 in (127 mm) deep with a 4.66 in (118 mm) flange, weighing 12.7 lb/ft (18.9 kg/m).

ST shapes are structural tees split from S shapes, inheriting the tapered flange proportions of their S-shape parent. They're specified for the same general tee applications as WT and MT shapes — truss and joist chords, built-up sections — in situations where the specific proportions of a split S shape suit the design, including retrofit or matching work on structures originally built with S-shape members.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)12.7
Depth of Section (in)5.0
Width of Section (in)4.66
Web Thickness (in)0.311
Flange Thickness (in)0.491
Kdet Dimension (in)1.125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)7.79
Zx (in³)3.7
Sx (in³)2.05
rx (in)1.45
Iy (in⁴)3.36
Zy (in³)2.49
Sy (in³)1.44
ry (in)0.95
J (in⁴)0.3
Cw (in⁶)0.173
ro (in)1.98
H (-)0.767
