ST5x17.5 – ST Shapes

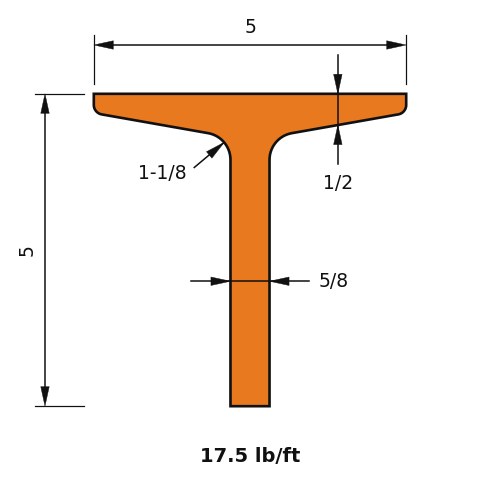

ST5x17.5 is a tee 5 in (127 mm) deep with a 4.94 in (125 mm) flange, weighing 17.5 lb/ft (26.0 kg/m).
ST shapes are structural tees split from S shapes, inheriting the tapered flange proportions of their S-shape parent. They're specified for the same general tee applications as WT and MT shapes — truss and joist chords, built-up sections — in situations where the specific proportions of a split S shape suit the design, including retrofit or matching work on structures originally built with S-shape members.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 17.5 |
| Depth of Section (in) | 5.0 |
| Width of Section (in) | 4.94 |
| Web Thickness (in) | 0.594 |
| Flange Thickness (in) | 0.491 |
| Kdet Dimension (in) | 1.125 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 12.5 |
| Zx (in³) | 6.58 |
| Sx (in³) | 3.62 |
| rx (in) | 1.56 |
| Iy (in⁴) | 4.15 |
| Zy (in³) | 3.1 |
| Sy (in³) | 1.68 |
| ry (in) | 0.899 |
| J (in⁴) | 0.633 |
| Cw (in⁶) | 0.725 |
| ro (in) | 2.23 |
| H (-) | 0.653 |
Full sortable table: Section properties table for this family
