ST4x11.5 – ST Shapes

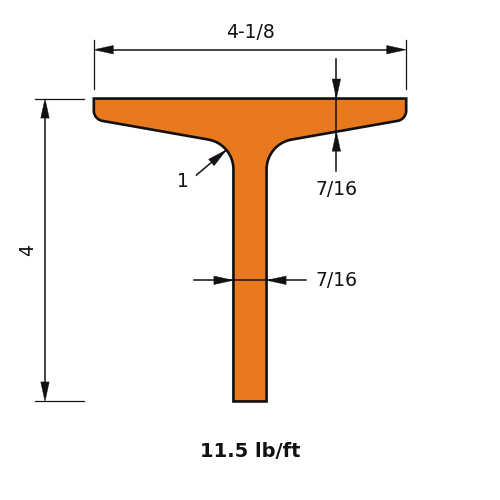

ST4x11.5 is a tee 4 in (102 mm) deep with a 4.17 in (106 mm) flange, weighing 11.5 lb/ft (17.1 kg/m).
ST shapes are structural tees split from S shapes, inheriting the tapered flange proportions of their S-shape parent. They're specified for the same general tee applications as WT and MT shapes — truss and joist chords, built-up sections — in situations where the specific proportions of a split S shape suit the design, including retrofit or matching work on structures originally built with S-shape members.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 11.5 |
| Depth of Section (in) | 4.0 |
| Width of Section (in) | 4.17 |
| Web Thickness (in) | 0.441 |
| Flange Thickness (in) | 0.425 |
| Kdet Dimension (in) | 1.0 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 5 |
| Zx (in³) | 3.19 |
| Sx (in³) | 1.76 |
| rx (in) | 1.22 |
| Iy (in⁴) | 2.13 |
| Zy (in³) | 1.84 |
| Sy (in³) | 1.02 |
| ry (in) | 0.795 |
| J (in⁴) | 0.271 |
| Cw (in⁶) | 0.168 |
| ro (in) | 1.73 |
| H (-) | 0.704 |
Full sortable table: Section properties table for this family
