ST6x15.9 – ST Shapes

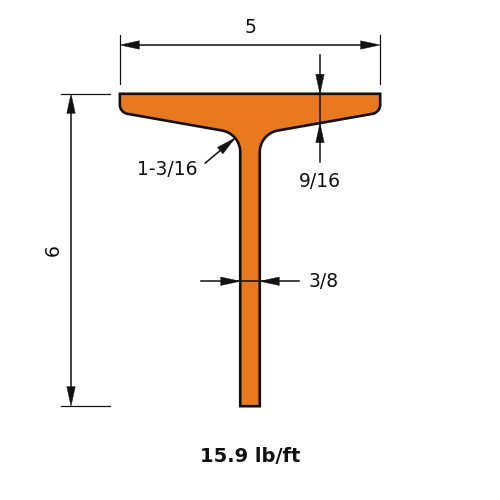

ST6x15.9 is a tee 6 in (152 mm) deep with a 5 in (127 mm) flange, weighing 15.9 lb/ft (23.7 kg/m).
ST shapes are structural tees split from S shapes, inheriting the tapered flange proportions of their S-shape parent. They're specified for the same general tee applications as WT and MT shapes — truss and joist chords, built-up sections — in situations where the specific proportions of a split S shape suit the design, including retrofit or matching work on structures originally built with S-shape members.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 15.9 |
| Depth of Section (in) | 6.0 |
| Width of Section (in) | 5.0 |
| Web Thickness (in) | 0.35 |
| Flange Thickness (in) | 0.544 |
| Kdet Dimension (in) | 1.1875 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 14.8 |
| Zx (in³) | 5.94 |
| Sx (in³) | 3.3 |
| rx (in) | 1.78 |
| Iy (in⁴) | 4.66 |
| Zy (in³) | 3.22 |
| Sy (in³) | 1.87 |
| ry (in) | 1 |
| J (in⁴) | 0.438 |
| Cw (in⁶) | 0.364 |
| ro (in) | 2.39 |
| H (-) | 0.731 |
Full sortable table: Section properties table for this family
