ST6x25 – ST Shapes

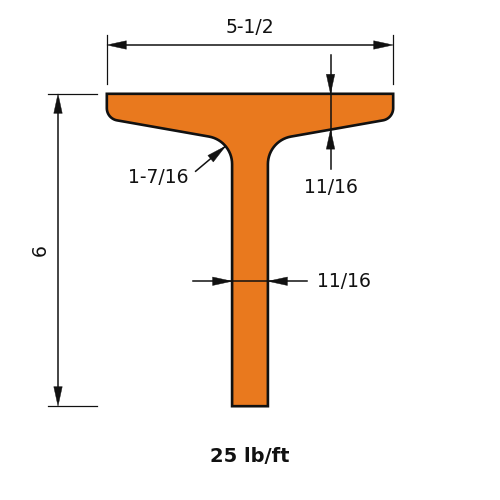

ST6x25 is a tee 6 in (152 mm) deep with a 5.48 in (139 mm) flange, weighing 25 lb/ft (37.2 kg/m).

ST shapes are structural tees split from S shapes, inheriting the tapered flange proportions of their S-shape parent. They're specified for the same general tee applications as WT and MT shapes — truss and joist chords, built-up sections — in situations where the specific proportions of a split S shape suit the design, including retrofit or matching work on structures originally built with S-shape members.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)25.0
Depth of Section (in)6.0
Width of Section (in)5.48
Web Thickness (in)0.687
Flange Thickness (in)0.659
Kdet Dimension (in)1.4375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)25.1
Zx (in³)11
Sx (in³)6.04
rx (in)1.85
Iy (in⁴)7.79
Zy (in³)5.16
Sy (in³)2.84
ry (in)1.03
J (in⁴)1.36
Cw (in⁶)1.97
ro (in)2.6
H (-)0.662

Full sortable table: Section properties table for this family
