ST7.5x21.45 – ST Shapes

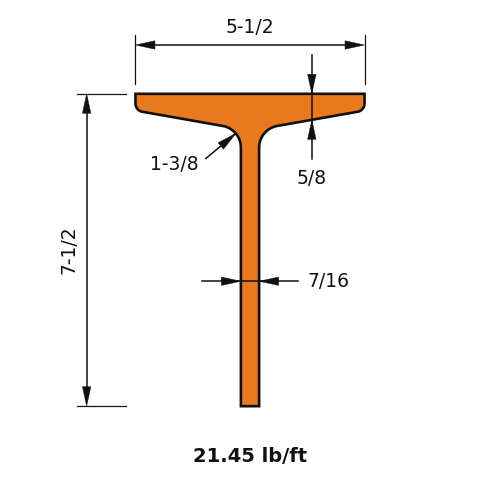

ST7.5x21.45 is a tee 7.5 in (191 mm) deep with a 5.5 in (140 mm) flange, weighing 21.45 lb/ft (31.9 kg/m).
ST shapes are structural tees split from S shapes, inheriting the tapered flange proportions of their S-shape parent. They're specified for the same general tee applications as WT and MT shapes — truss and joist chords, built-up sections — in situations where the specific proportions of a split S shape suit the design, including retrofit or matching work on structures originally built with S-shape members.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 21.45 |
| Depth of Section (in) | 7.5 |
| Width of Section (in) | 5.5 |
| Web Thickness (in) | 0.411 |
| Flange Thickness (in) | 0.622 |
| Kdet Dimension (in) | 1.375 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 32.9 |
| Zx (in³) | 10.8 |
| Sx (in³) | 5.99 |
| rx (in) | 2.29 |
| Iy (in⁴) | 7.13 |
| Zy (in³) | 4.54 |
| Sy (in³) | 2.59 |
| ry (in) | 1.06 |
| J (in⁴) | 0.765 |
| Cw (in⁶) | 0.995 |
| ro (in) | 3.04 |
| H (-) | 0.689 |
Full sortable table: Section properties table for this family
