ST6x20.4 – ST Shapes

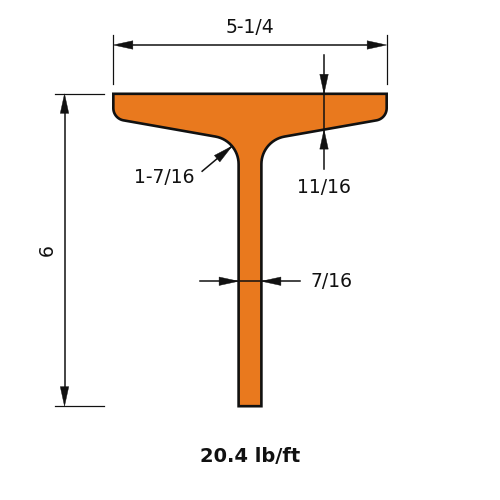

ST6x20.4 is a tee 6 in (152 mm) deep with a 5.25 in (133 mm) flange, weighing 20.4 lb/ft (30.4 kg/m).
ST shapes are structural tees split from S shapes, inheriting the tapered flange proportions of their S-shape parent. They're specified for the same general tee applications as WT and MT shapes — truss and joist chords, built-up sections — in situations where the specific proportions of a split S shape suit the design, including retrofit or matching work on structures originally built with S-shape members.
