ST7.5x25 – ST Shapes

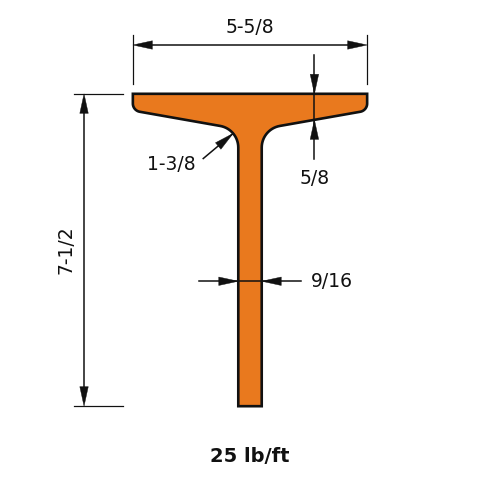

ST7.5x25 is a tee 7.5 in (191 mm) deep with a 5.64 in (143 mm) flange, weighing 25 lb/ft (37.2 kg/m).
ST shapes are structural tees split from S shapes, inheriting the tapered flange proportions of their S-shape parent. They're specified for the same general tee applications as WT and MT shapes — truss and joist chords, built-up sections — in situations where the specific proportions of a split S shape suit the design, including retrofit or matching work on structures originally built with S-shape members.
