ST9x27.35 – ST Shapes

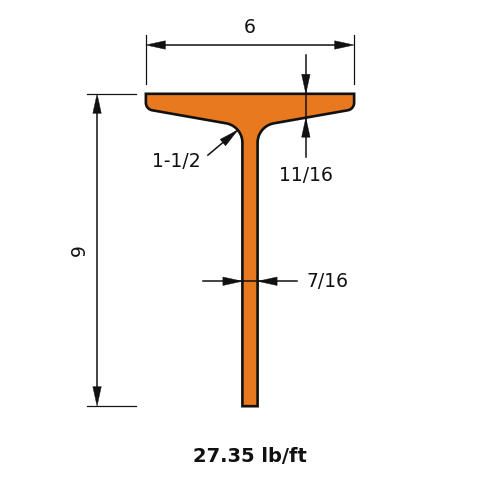

ST9x27.35 is a tee 9 in (229 mm) deep with a 6 in (152 mm) flange, weighing 27.35 lb/ft (40.7 kg/m).
ST shapes are structural tees split from S shapes, inheriting the tapered flange proportions of their S-shape parent. They're specified for the same general tee applications as WT and MT shapes — truss and joist chords, built-up sections — in situations where the specific proportions of a split S shape suit the design, including retrofit or matching work on structures originally built with S-shape members.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 27.35 |
| Depth of Section (in) | 9.0 |
| Width of Section (in) | 6.0 |
| Web Thickness (in) | 0.461 |
| Flange Thickness (in) | 0.691 |
| Kdet Dimension (in) | 1.5 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 62.3 |
| Zx (in³) | 17.3 |
| Sx (in³) | 9.6 |
| rx (in) | 2.79 |
| Iy (in⁴) | 10.4 |
| Zy (in³) | 6.06 |
| Sy (in³) | 3.45 |
| ry (in) | 1.14 |
| J (in⁴) | 1.16 |
| Cw (in⁶) | 2.26 |
| ro (in) | 3.71 |
| H (-) | 0.66 |
