ST10x37.5 – ST Shapes

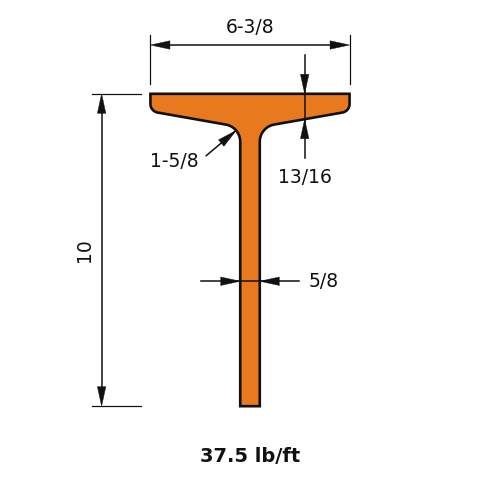

ST10x37.5 is a tee 10 in (254 mm) deep with a 6.39 in (162 mm) flange, weighing 37.5 lb/ft (55.8 kg/m).

ST shapes are structural tees split from S shapes, inheriting the tapered flange proportions of their S-shape parent. They're specified for the same general tee applications as WT and MT shapes — truss and joist chords, built-up sections — in situations where the specific proportions of a split S shape suit the design, including retrofit or matching work on structures originally built with S-shape members.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)37.5
Depth of Section (in)10.0
Width of Section (in)6.39
Web Thickness (in)0.635
Flange Thickness (in)0.795
Kdet Dimension (in)1.625

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)109
Zx (in³)28.6
Sx (in³)15.8
rx (in)3.15
Iy (in⁴)14.8
Zy (in³)8.36
Sy (in³)4.62
ry (in)1.16
J (in⁴)2.28
Cw (in⁶)7.21
ro (in)4.29
H (-)0.613
