ST10x43 – ST Shapes

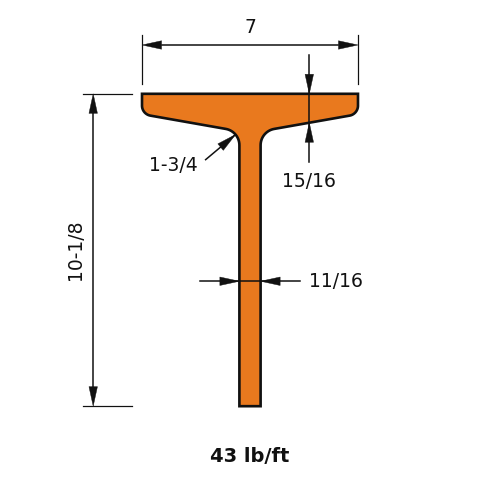

ST10x43 is a tee 10.2 in (259 mm) deep with a 7.06 in (179 mm) flange, weighing 43 lb/ft (64.0 kg/m).
ST shapes are structural tees split from S shapes, inheriting the tapered flange proportions of their S-shape parent. They're specified for the same general tee applications as WT and MT shapes — truss and joist chords, built-up sections — in situations where the specific proportions of a split S shape suit the design, including retrofit or matching work on structures originally built with S-shape members.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 43.0 |
| Depth of Section (in) | 10.2 |
| Width of Section (in) | 7.06 |
| Web Thickness (in) | 0.66 |
| Flange Thickness (in) | 0.92 |
| Kdet Dimension (in) | 1.75 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 124 |
| Zx (in³) | 31.1 |
| Sx (in³) | 17.2 |
| rx (in) | 3.13 |
| Iy (in⁴) | 23.3 |
| Zy (in³) | 11.6 |
| Sy (in³) | 6.59 |
| ry (in) | 1.36 |
| J (in⁴) | 3.3 |
| Cw (in⁶) | 9.17 |
| ro (in) | 4.21 |
| H (-) | 0.659 |
Full sortable table: Section properties table for this family
