ST10x33 – ST Shapes

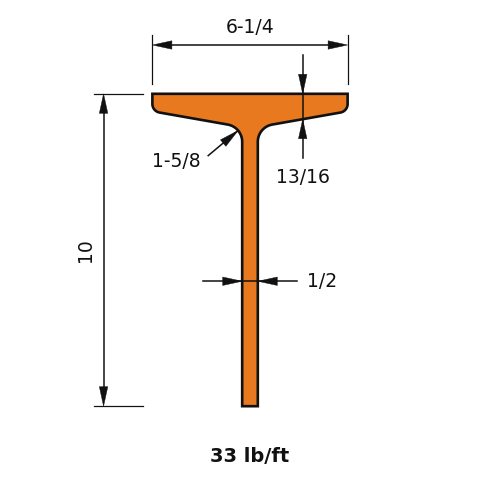

ST10x33 is a tee 10 in (254 mm) deep with a 6.26 in (159 mm) flange, weighing 33 lb/ft (49.1 kg/m).
ST shapes are structural tees split from S shapes, inheriting the tapered flange proportions of their S-shape parent. They're specified for the same general tee applications as WT and MT shapes — truss and joist chords, built-up sections — in situations where the specific proportions of a split S shape suit the design, including retrofit or matching work on structures originally built with S-shape members.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 33.0 |
| Depth of Section (in) | 10.0 |
| Width of Section (in) | 6.26 |
| Web Thickness (in) | 0.505 |
| Flange Thickness (in) | 0.795 |
| Kdet Dimension (in) | 1.625 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 92.9 |
| Zx (in³) | 23.4 |
| Sx (in³) | 12.9 |
| rx (in) | 3.1 |
| Iy (in⁴) | 13.7 |
| Zy (in³) | 7.7 |
| Sy (in³) | 4.39 |
| ry (in) | 1.19 |
| J (in⁴) | 1.78 |
| Cw (in⁶) | 4.02 |
| ro (in) | 4.1 |
| H (-) | 0.654 |
Full sortable table: Section properties table for this family
