ST10x48 – ST Shapes

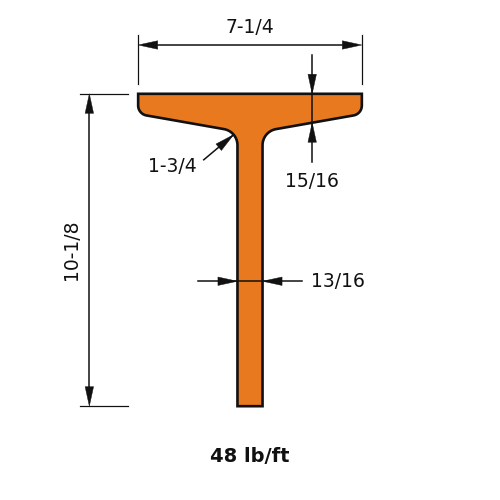

ST10x48 is a tee 10.2 in (259 mm) deep with a 7.2 in (183 mm) flange, weighing 48 lb/ft (71.4 kg/m).

ST shapes are structural tees split from S shapes, inheriting the tapered flange proportions of their S-shape parent. They're specified for the same general tee applications as WT and MT shapes — truss and joist chords, built-up sections — in situations where the specific proportions of a split S shape suit the design, including retrofit or matching work on structures originally built with S-shape members.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)48.0
Depth of Section (in)10.2
Width of Section (in)7.2
Web Thickness (in)0.8
Flange Thickness (in)0.92
Kdet Dimension (in)1.75

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)143
Zx (in³)36.9
Sx (in³)20.3
rx (in)3.18
Iy (in⁴)25
Zy (in³)12.5
Sy (in³)6.93
ry (in)1.33
J (in⁴)4.16
Cw (in⁶)15
ro (in)4.36
H (-)0.625
