ST12x40 – ST Shapes

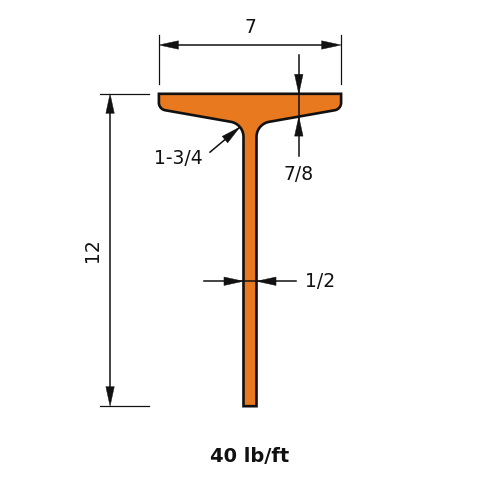

ST12x40 is a tee 12 in (305 mm) deep with a 7 in (178 mm) flange, weighing 40 lb/ft (59.5 kg/m).
ST shapes are structural tees split from S shapes, inheriting the tapered flange proportions of their S-shape parent. They're specified for the same general tee applications as WT and MT shapes — truss and joist chords, built-up sections — in situations where the specific proportions of a split S shape suit the design, including retrofit or matching work on structures originally built with S-shape members.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 40.0 |
| Depth of Section (in) | 12.0 |
| Width of Section (in) | 7.0 |
| Web Thickness (in) | 0.5 |
| Flange Thickness (in) | 0.87 |
| Kdet Dimension (in) | 1.75 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 162 |
| Zx (in³) | 33.6 |
| Sx (in³) | 18.6 |
| rx (in) | 3.72 |
| Iy (in⁴) | 21 |
| Zy (in³) | 10.4 |
| Sy (in³) | 6 |
| ry (in) | 1.34 |
| J (in⁴) | 2.44 |
| Cw (in⁶) | 6.94 |
| ro (in) | 4.88 |
| H (-) | 0.656 |
Full sortable table: Section properties table for this family
