MT Shapes - MT2.5x9.45
MT shapes are structural tees split from M shapes, carrying the lighter weights and smaller sizes available in the M series. They serve the same general purpose as WT shapes — truss chords, light built-up sections, and miscellaneous fabrications — wherever a lighter, smaller tee section is more appropriate than one cut from a full-size W shape.
Nearby Sections

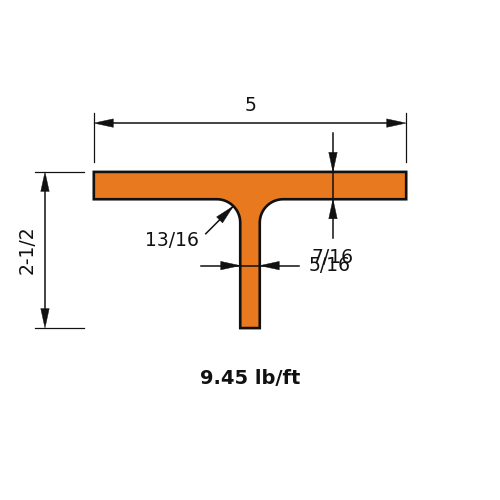

Dimensions
| Property | Value |
|---|---|
| Nominal Weight | 9.45 |
| Depth of Section | 2.5 |
| Width of Section | 5.0 |
| Web Thickness | 0.316 |
| Flange Thickness | 0.416 |
| Kdet Dimension | 0.8125 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix | 1.05 |
| Zx | 1.03 |
| Sx | 0.528 |
| rx | 0.617 |
| Iy | 4.35 |
| Zy | 2.66 |
| Sy | 1.74 |
| ry | 1.26 |
| J | 0.156 |
| Cw | 0.0732 |
| ro | 1.43 |
| H | 0.955 |
Full sortable table: Section properties table for this family
