MT Shapes - MT2x3
MT shapes are structural tees split from M shapes, carrying the lighter weights and smaller sizes available in the M series. They serve the same general purpose as WT shapes — truss chords, light built-up sections, and miscellaneous fabrications — wherever a lighter, smaller tee section is more appropriate than one cut from a full-size W shape.
Nearby Sections

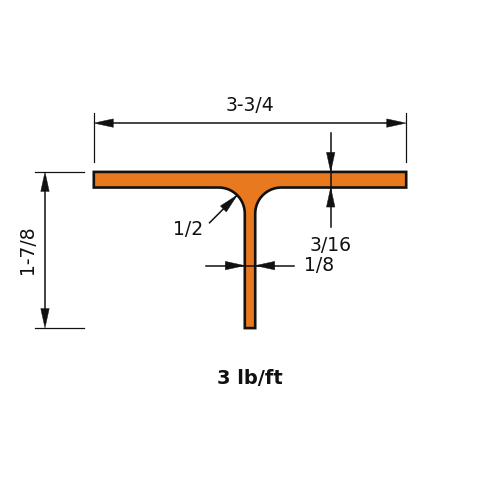

Dimensions
| Property | Value |
|---|---|
| Nominal Weight | 3.0 |
| Depth of Section | 1.9 |
| Width of Section | 3.8 |
| Web Thickness | 0.13 |
| Flange Thickness | 0.16 |
| Kdet Dimension | 0.5 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix | 0.208 |
| Zx | 0.241 |
| Sx | 0.133 |
| rx | 0.493 |
| Iy | 0.732 |
| Zy | 0.588 |
| Sy | 0.385 |
| ry | 0.926 |
| J | 0.00919 |
| Cw | 0.00193 |
| ro | 1.08 |
| H | 0.942 |
Full sortable table: Section properties table for this family
