MT Shapes - MT3x1.85
MT shapes are structural tees split from M shapes, carrying the lighter weights and smaller sizes available in the M series. They serve the same general purpose as WT shapes — truss chords, light built-up sections, and miscellaneous fabrications — wherever a lighter, smaller tee section is more appropriate than one cut from a full-size W shape.
Nearby Sections

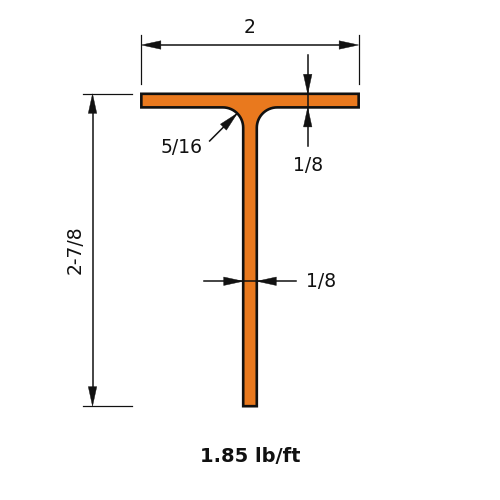

Dimensions
| Property | Value |
|---|---|
| Nominal Weight | 1.85 |
| Depth of Section | 2.96 |
| Width of Section | 2.0 |
| Web Thickness | 0.098 |
| Flange Thickness | 0.129 |
| Kdet Dimension | 0.3125 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix | 0.483 |
| Zx | 0.409 |
| Sx | 0.226 |
| rx | 0.945 |
| Iy | 0.0863 |
| Zy | 0.136 |
| Sy | 0.0863 |
| ry | 0.4 |
| J | 0.00265 |
| Cw | 0.000754 |
| ro | 1.28 |
| H | 0.644 |
Full sortable table: Section properties table for this family
