MT Shapes - MT3x2.2

MT shapes are structural tees split from M shapes, carrying the lighter weights and smaller sizes available in the M series. They serve the same general purpose as WT shapes — truss chords, light built-up sections, and miscellaneous fabrications — wherever a lighter, smaller tee section is more appropriate than one cut from a full-size W shape.

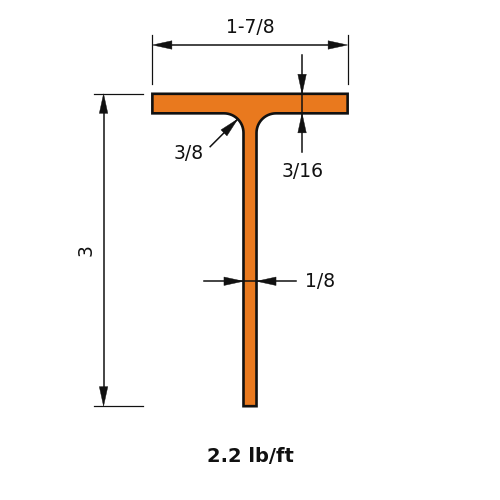

Dimensions

PropertyValue
Nominal Weight2.2
Depth of Section3.0
Width of Section1.84
Web Thickness0.114
Flange Thickness0.171
Kdet Dimension0.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix0.579
Zx0.483
Sx0.268
rx0.949
Iy0.0897
Zy0.155
Sy0.0973
ry0.374
J0.00494
Cw0.00124
ro1.27
H0.646

Full sortable table: Section properties table for this family
