MT5x4 – MT Shapes

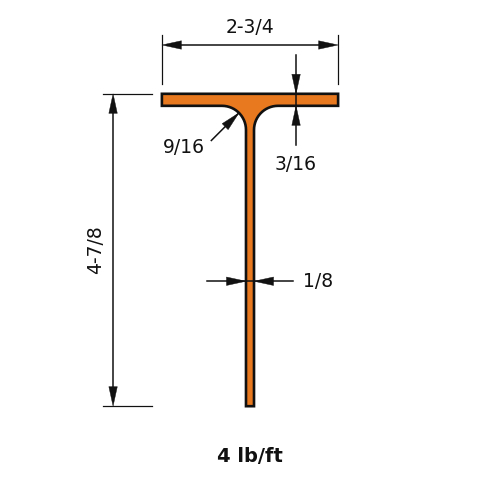

MT5x4 is a tee 4.98 in (126 mm) deep with a 2.69 in (68 mm) flange, weighing 4 lb/ft (6.0 kg/m).
MT shapes are structural tees split from M shapes, carrying the lighter weights and smaller sizes available in the M series. They serve the same general purpose as WT shapes — truss chords, light built-up sections, and miscellaneous fabrications — wherever a lighter, smaller tee section is more appropriate than one cut from a full-size W shape.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 4.0 |
| Depth of Section (in) | 4.98 |
| Width of Section (in) | 2.69 |
| Web Thickness (in) | 0.141 |
| Flange Thickness (in) | 0.182 |
| Kdet Dimension (in) | 0.5625 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 3.08 |
| Zx (in³) | 1.61 |
| Sx (in³) | 0.894 |
| rx (in) | 1.62 |
| Iy (in⁴) | 0.296 |
| Zy (in³) | 0.354 |
| Sy (in³) | 0.22 |
| ry (in) | 0.502 |
| J (in⁴) | 0.0112 |
| Cw (in⁶) | 0.00989 |
| ro (in) | 2.22 |
| H (-) | 0.583 |
Full sortable table: Section properties table for this family
