MT Shapes - MT5x3.75

MT shapes are structural tees split from M shapes, carrying the lighter weights and smaller sizes available in the M series. They serve the same general purpose as WT shapes — truss chords, light built-up sections, and miscellaneous fabrications — wherever a lighter, smaller tee section is more appropriate than one cut from a full-size W shape.

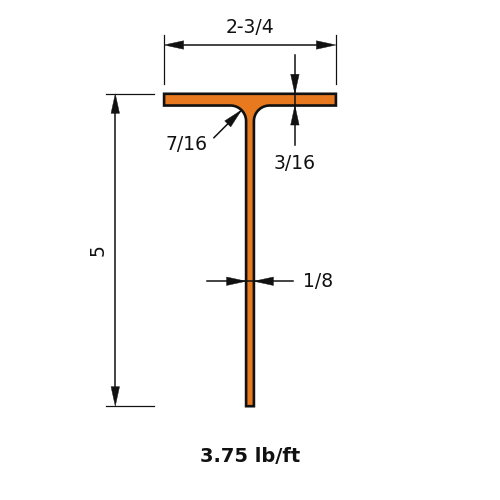

Dimensions

PropertyValue
Nominal Weight3.75
Depth of Section5.0
Width of Section2.69
Web Thickness0.13
Flange Thickness0.173
Kdet Dimension0.4375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix2.91
Zx1.51
Sx0.836
rx1.63
Iy0.281
Zy0.334
Sy0.209
ry0.505
J0.00932
Cw0.00792
ro2.22
H0.588

Full sortable table: Section properties table for this family
