MT Shapes - MT5x4.5

MT shapes are structural tees split from M shapes, carrying the lighter weights and smaller sizes available in the M series. They serve the same general purpose as WT shapes — truss chords, light built-up sections, and miscellaneous fabrications — wherever a lighter, smaller tee section is more appropriate than one cut from a full-size W shape.

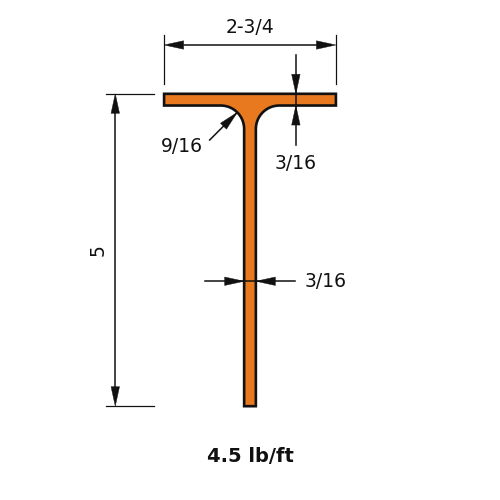

Dimensions

PropertyValue
Nominal Weight4.5
Depth of Section5.0
Width of Section2.69
Web Thickness0.157
Flange Thickness0.206
Kdet Dimension0.5625

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix3.47
Zx1.81
Sx1
rx1.62
Iy0.336
Zy0.403
Sy0.25
ry0.505
J0.0156
Cw0.0138
ro2.22
H0.585
