MT6x5.4 – MT Shapes

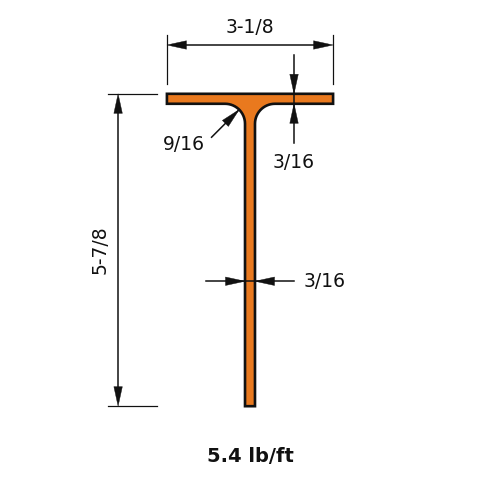

MT6x5.4 is a tee 5.99 in (152 mm) deep with a 3.07 in (78 mm) flange, weighing 5.4 lb/ft (8.0 kg/m).
MT shapes are structural tees split from M shapes, carrying the lighter weights and smaller sizes available in the M series. They serve the same general purpose as WT shapes — truss chords, light built-up sections, and miscellaneous fabrications — wherever a lighter, smaller tee section is more appropriate than one cut from a full-size W shape.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 5.4 |
| Depth of Section (in) | 5.99 |
| Width of Section (in) | 3.07 |
| Web Thickness (in) | 0.16 |
| Flange Thickness (in) | 0.21 |
| Kdet Dimension (in) | 0.5625 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 6.03 |
| Zx (in³) | 2.63 |
| Sx (in³) | 1.46 |
| rx (in) | 1.95 |
| Iy (in⁴) | 0.506 |
| Zy (in³) | 0.532 |
| Sy (in³) | 0.33 |
| ry (in) | 0.566 |
| J (in⁴) | 0.0196 |
| Cw (in⁶) | 0.025 |
| ro (in) | 2.69 |
| H (-) | 0.574 |
Full sortable table: Section properties table for this family
