MT Shapes - MT6x5.9
MT shapes are structural tees split from M shapes, carrying the lighter weights and smaller sizes available in the M series. They serve the same general purpose as WT shapes — truss chords, light built-up sections, and miscellaneous fabrications — wherever a lighter, smaller tee section is more appropriate than one cut from a full-size W shape.
Nearby Sections

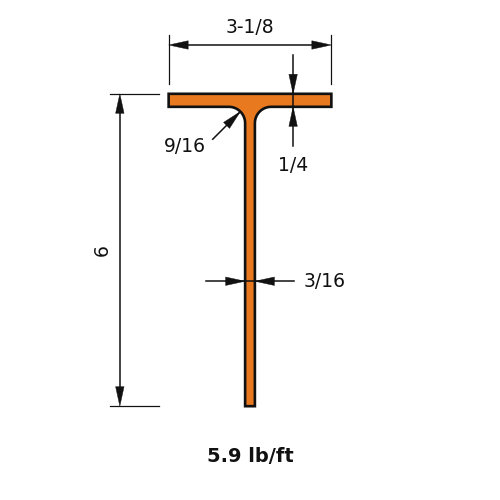

Dimensions
| Property | Value |
|---|---|
| Nominal Weight | 5.9 |
| Depth of Section | 6.0 |
| Width of Section | 3.07 |
| Web Thickness | 0.177 |
| Flange Thickness | 0.225 |
| Kdet Dimension | 0.5625 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix | 6.61 |
| Zx | 2.89 |
| Sx | 1.61 |
| rx | 1.96 |
| Iy | 0.543 |
| Zy | 0.575 |
| Sy | 0.354 |
| ry | 0.561 |
| J | 0.0249 |
| Cw | 0.0337 |
| ro | 2.71 |
| H | 0.567 |
Full sortable table: Section properties table for this family
