MT6.25x5.8 – MT Shapes

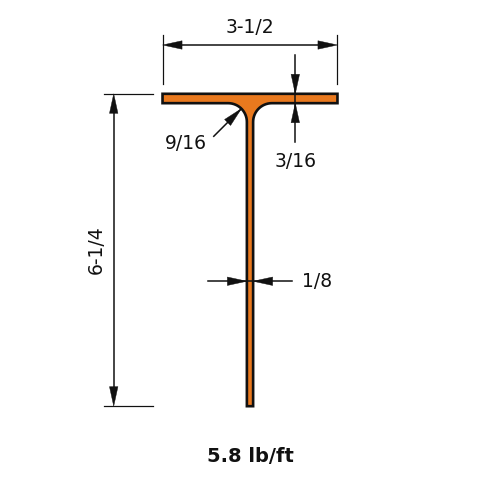

MT6.25x5.8 is a tee 6.25 in (159 mm) deep with a 3.5 in (89 mm) flange, weighing 5.8 lb/ft (8.6 kg/m).
MT shapes are structural tees split from M shapes, carrying the lighter weights and smaller sizes available in the M series. They serve the same general purpose as WT shapes — truss chords, light built-up sections, and miscellaneous fabrications — wherever a lighter, smaller tee section is more appropriate than one cut from a full-size W shape.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 5.8 |
| Depth of Section (in) | 6.25 |
| Width of Section (in) | 3.5 |
| Web Thickness (in) | 0.155 |
| Flange Thickness (in) | 0.211 |
| Kdet Dimension (in) | 0.5625 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 6.94 |
| Zx (in³) | 2.86 |
| Sx (in³) | 1.57 |
| rx (in) | 2.03 |
| Iy (in⁴) | 0.756 |
| Zy (in³) | 0.684 |
| Sy (in³) | 0.432 |
| ry (in) | 0.669 |
| J (in⁴) | 0.0206 |
| Cw (in⁶) | 0.0268 |
| ro (in) | 2.75 |
| H (-) | 0.602 |
Full sortable table: Section properties table for this family
