MT6.25x6.2 – MT Shapes

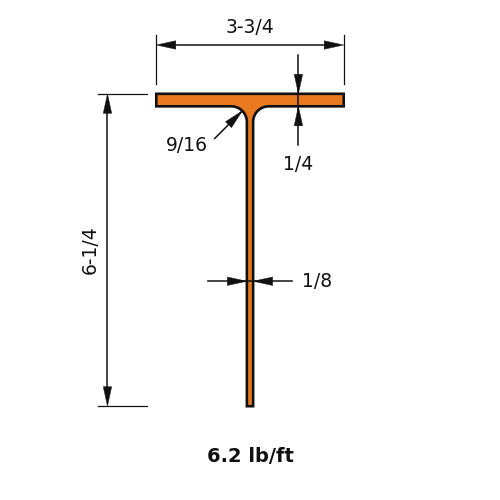

MT6.25x6.2 is a tee 6.27 in (159 mm) deep with a 3.75 in (95 mm) flange, weighing 6.2 lb/ft (9.2 kg/m).
MT shapes are structural tees split from M shapes, carrying the lighter weights and smaller sizes available in the M series. They serve the same general purpose as WT shapes — truss chords, light built-up sections, and miscellaneous fabrications — wherever a lighter, smaller tee section is more appropriate than one cut from a full-size W shape.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 6.2 |
| Depth of Section (in) | 6.27 |
| Width of Section (in) | 3.75 |
| Web Thickness (in) | 0.155 |
| Flange Thickness (in) | 0.228 |
| Kdet Dimension (in) | 0.5625 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 7.29 |
| Zx (in³) | 2.92 |
| Sx (in³) | 1.61 |
| rx (in) | 2.01 |
| Iy (in⁴) | 1 |
| Zy (in³) | 0.839 |
| Sy (in³) | 0.536 |
| ry (in) | 0.746 |
| J (in⁴) | 0.0246 |
| Cw (in⁶) | 0.0284 |
| ro (in) | 2.69 |
| H (-) | 0.634 |
Full sortable table: Section properties table for this family
