HSS Shapes - Round - HSS2.375X.218

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

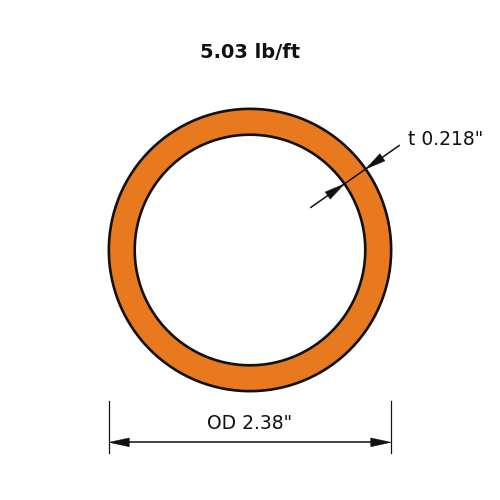

Dimensions

PropertyValue
Nominal Weight5.03
Outside Diameter2.375
Nominal Thickness0.218

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix0.824
Zx0.96
Sx0.694
rx0.771
Iy0.824
Zy0.96
Sy0.694
ry0.771
J1.65
C1.39

Full sortable table: Section properties table for this family
