HSS2-3/8x1/4 (HSS2.375x.250) – HSS Shapes - Round

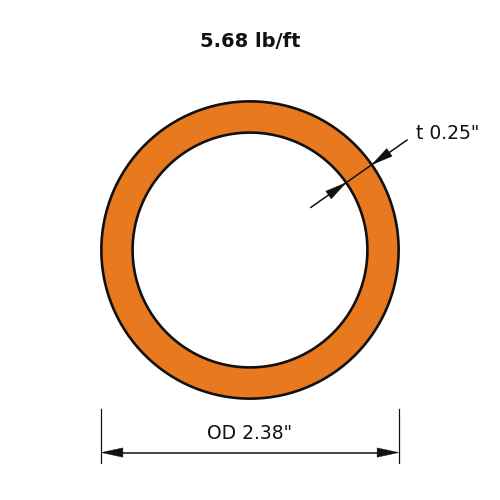

HSS2-3/8x1/4 is a 2.375 in (60 mm) diameter round hollow section with a 1/4 in (6 mm) nominal wall, weighing 5.68 lb/ft (8.5 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)5.68
Outside Diameter (in)2.375
Nominal Thickness (in)0.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)0.91
Zx (in³)1.07
Sx (in³)0.766
rx (in)0.762
Iy (in⁴)0.91
Zy (in³)1.07
Sy (in³)0.766
ry (in)0.762
J (in⁴)1.82
C (in³)1.53

Full sortable table: Section properties table for this family
