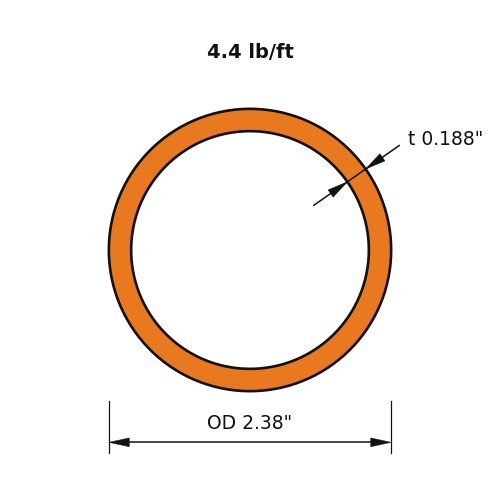

HSS Shapes - Round - HSS2.375X.188

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

Dimensions

PropertyValue
Nominal Weight4.4
Outside Diameter2.375
Nominal Thickness0.188

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix0.733
Zx0.845
Sx0.617
rx0.781
Iy0.733
Zy0.845
Sy0.617
ry0.781
J1.47
C1.23

Full sortable table: Section properties table for this family
