HSS Shapes - Rectangular - HSS2x1.5x.125

Rectangular HSS (Hollow Structural Sections) are closed, tube-shaped sections formed into a rectangular profile. Their closed shape gives them excellent torsional stiffness, while the unequal depth and width let you put the greater stiffness where the loading needs it. That makes rectangular HSS a common choice for beams and girts, canopy and entrance framing, architecturally exposed steelwork, and any framing where a clean closed profile and a strong axis are both required.

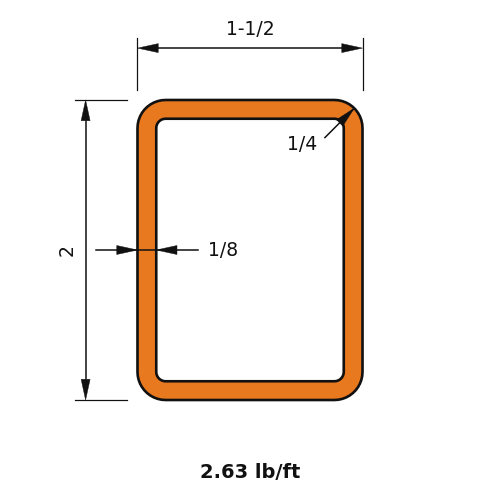

HSS2x1.5x.125
Select ZIP download

Select DWG download

Nearby Sections

Previous
HSS2x1.5x.1875
This section
HSS2x1.5x.125
Next
HSS2x1x.1875

Dimensions

PropertyValue
Nominal Weight2.63
Depth of Section2.0
Depth of Flat Wall1.65
Width of Section1.5
Width of Flat Wall1.15
Nominal Thickness0.125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix0.383
Zx0.475
Sx0.383
rx0.728
Iy0.244
Zy0.389
Sy0.325
ry0.581
J0.496
C0.599

Full sortable table: Section properties table for this family
