HSS Shapes - Rectangular - HSS2x1.5x.1875

Rectangular HSS (Hollow Structural Sections) are closed, tube-shaped sections formed into a rectangular profile. Their closed shape gives them excellent torsional stiffness, while the unequal depth and width let you put the greater stiffness where the loading needs it. That makes rectangular HSS a common choice for beams and girts, canopy and entrance framing, architecturally exposed steelwork, and any framing where a clean closed profile and a strong axis are both required.

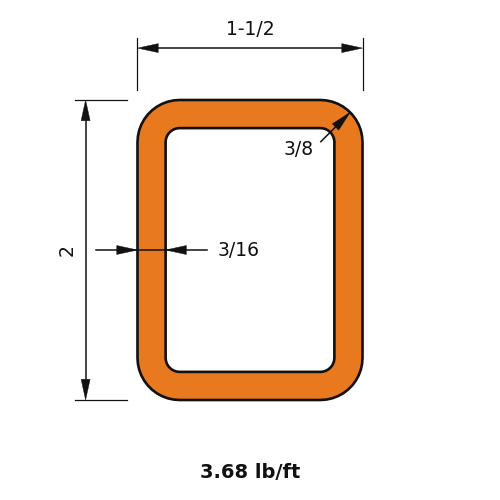

Dimensions

PropertyValue
Nominal Weight3.68
Depth of Section2.0
Depth of Flat Wall1.48
Width of Section1.5
Width of Flat Wall0.978
Nominal Thickness0.1875

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix0.495
Zx0.639
Sx0.495
rx0.697
Iy0.313
Zy0.521
Sy0.417
ry0.554
J0.664
C0.822

Full sortable table: Section properties table for this family
