HSS Shapes - Rectangular - HSS2x1x.1875

Rectangular HSS (Hollow Structural Sections) are closed, tube-shaped sections formed into a rectangular profile. Their closed shape gives them excellent torsional stiffness, while the unequal depth and width let you put the greater stiffness where the loading needs it. That makes rectangular HSS a common choice for beams and girts, canopy and entrance framing, architecturally exposed steelwork, and any framing where a clean closed profile and a strong axis are both required.

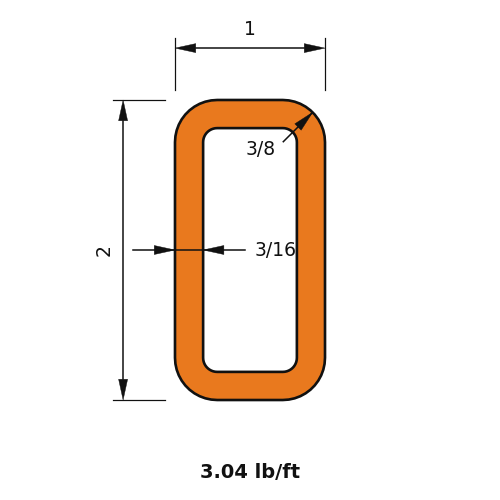

Dimensions

PropertyValue
Nominal Weight3.04
Depth of Section2.0
Depth of Flat Wall1.48
Width of Section1.0
Width of Flat Wall0.478
Nominal Thickness0.1875

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix0.35
Zx0.48
Sx0.35
rx0.643
Iy0.112
Zy0.288
Sy0.225
ry0.365
J0.301
C0.505

Full sortable table: Section properties table for this family
