HSS Shapes - Rectangular - HSS2.5x1x.125

Rectangular HSS (Hollow Structural Sections) are closed, tube-shaped sections formed into a rectangular profile. Their closed shape gives them excellent torsional stiffness, while the unequal depth and width let you put the greater stiffness where the loading needs it. That makes rectangular HSS a common choice for beams and girts, canopy and entrance framing, architecturally exposed steelwork, and any framing where a clean closed profile and a strong axis are both required.

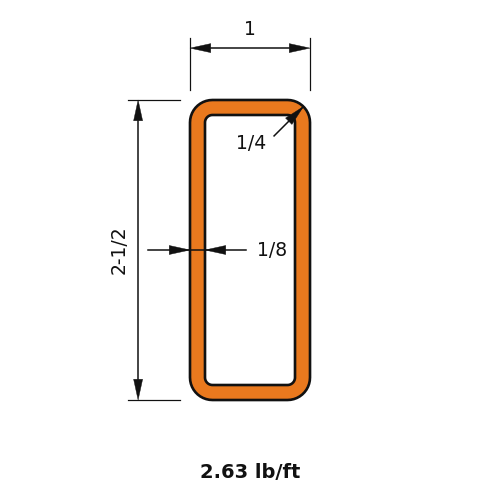

Dimensions

PropertyValue
Nominal Weight2.63
Depth of Section2.5
Depth of Flat Wall2.15
Width of Section1.0
Width of Flat Wall0.652
Nominal Thickness0.125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix0.503
Zx0.532
Sx0.403
rx0.834
Iy0.115
Zy0.274
Sy0.23
ry0.399
J0.322
C0.483

Full sortable table: Section properties table for this family
