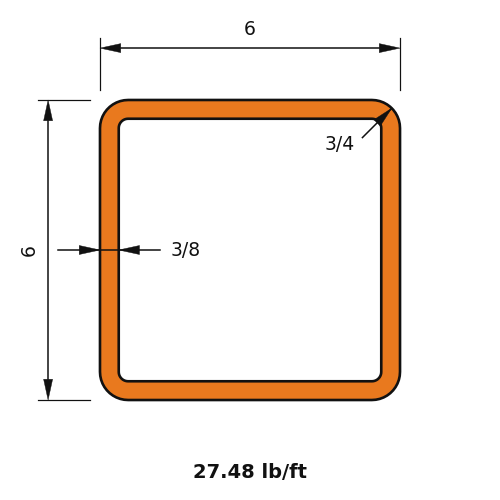

HSS Shapes - Square - HSS6x6x.375

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight27.48
Depth of Section6.0
Depth of Flat Wall4.95
Width of Section6.0
Width of Flat Wall4.95
Nominal Thickness0.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix39.5
Zx15.8
Sx13.2
rx2.28
Iy39.5
Zy15.8
Sy13.2
ry2.28
J64.6
C22.1

Full sortable table: Section properties table for this family
