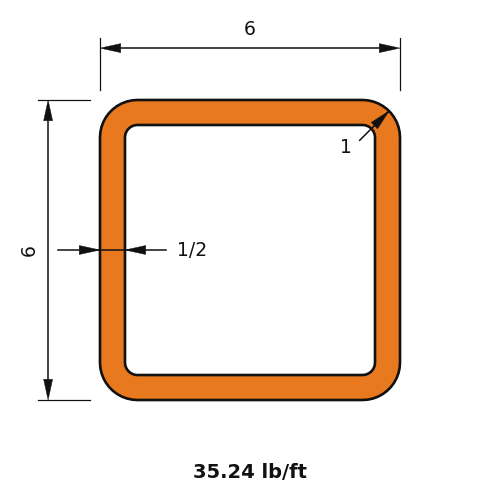

HSS Shapes - Square - HSS6x6x.5

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight35.24
Depth of Section6.0
Depth of Flat Wall4.61
Width of Section6.0
Width of Flat Wall4.61
Nominal Thickness0.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix48.3
Zx19.8
Sx16.1
rx2.23
Iy48.3
Zy19.8
Sy16.1
ry2.23
J81.1
C28.1

Full sortable table: Section properties table for this family
