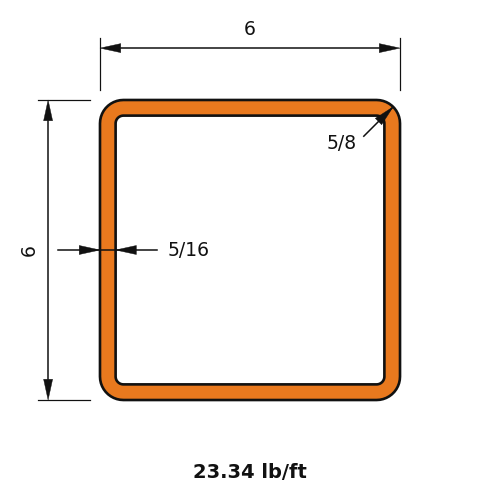

HSS Shapes - Square - HSS6x6x.3125

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight23.34
Depth of Section6.0
Depth of Flat Wall5.13
Width of Section6.0
Width of Flat Wall5.13
Nominal Thickness0.3125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix34.3
Zx13.6
Sx11.4
rx2.31
Iy34.3
Zy13.6
Sy11.4
ry2.31
J55.4
C18.9

Full sortable table: Section properties table for this family
