HSS20x20x5/16 (HSS20x20x.3125) – HSS Shapes - Square

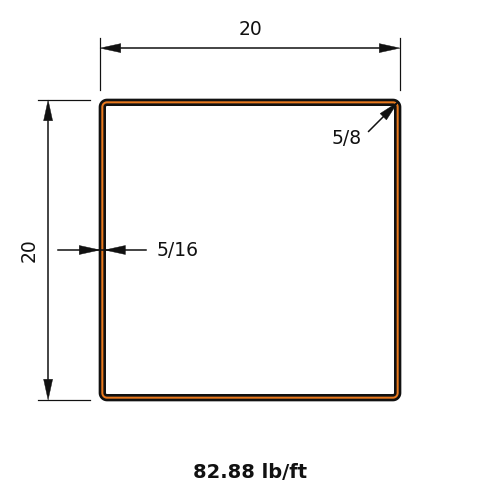

HSS20x20x5/16 is a 20 in (508 mm) square hollow section with a 5/16 in (8 mm) nominal wall, weighing 82.88 lb/ft (123.3 kg/m).

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)82.88
Depth of Section (in)20.0
Depth of Flat Wall (in)19.1
Width of Section (in)20.0
Width of Flat Wall (in)19.1
Nominal Thickness (in)0.3125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1460
Zx (in³)167
Sx (in³)146
rx (in)8.03
Iy (in⁴)1460
Zy (in³)167
Sy (in³)146
ry (in)8.03
J (in⁴)2250
C (in³)226
