HSS18x18x1 – HSS Shapes - Square

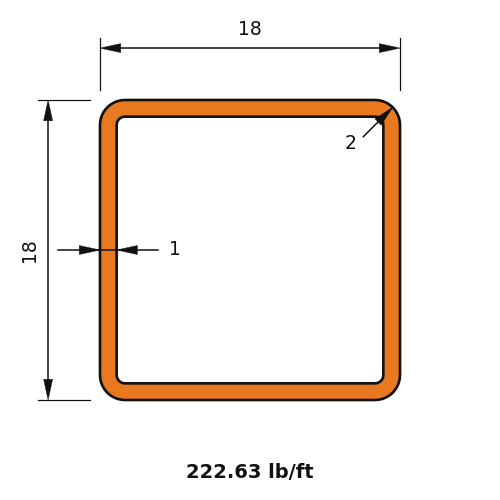

HSS18x18x1 is an 18 in (457 mm) square hollow section with a 1 in (25 mm) nominal wall, weighing 222.63 lb/ft (331.3 kg/m).

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)222.63
Depth of Section (in)18.0
Depth of Flat Wall (in)15.2
Width of Section (in)18.0
Width of Flat Wall (in)15.2
Nominal Thickness (in)1.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)2920
Zx (in³)387
Sx (in³)324
rx (in)6.9
Iy (in⁴)2920
Zy (in³)387
Sy (in³)324
ry (in)6.9
J (in⁴)4740
C (in³)539
