HSS20x20x3/8 (HSS20x20x.375) – HSS Shapes - Square

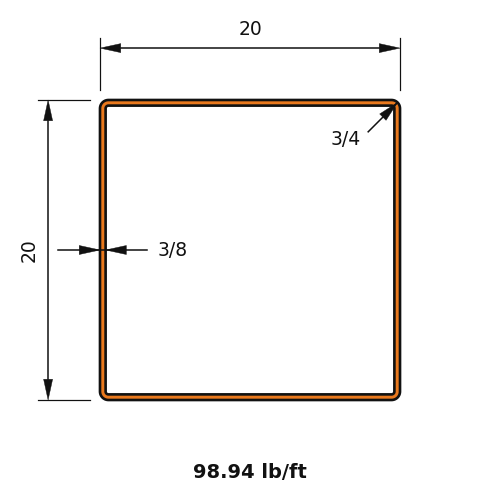

HSS20x20x3/8 is a 20 in (508 mm) square hollow section with a 3/8 in (10 mm) nominal wall, weighing 98.94 lb/ft (147.2 kg/m).

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)98.94
Depth of Section (in)20.0
Depth of Flat Wall (in)19.0
Width of Section (in)20.0
Width of Flat Wall (in)19.0
Nominal Thickness (in)0.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1740
Zx (in³)199
Sx (in³)174
rx (in)8
Iy (in⁴)1740
Zy (in³)199
Sy (in³)174
ry (in)8
J (in⁴)2680
C (in³)269

Full sortable table: Section properties table for this family
