HSS18x18x7/8 (HSS18x18x.875) – HSS Shapes - Square

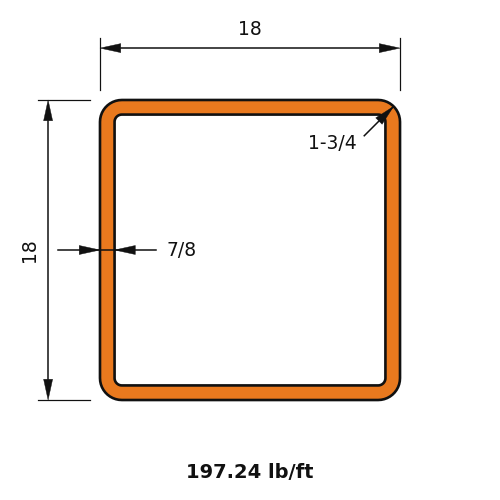

HSS18x18x7/8 is an 18 in (457 mm) square hollow section with a 7/8 in (22 mm) nominal wall, weighing 197.24 lb/ft (293.5 kg/m).

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)197.24
Depth of Section (in)18.0
Depth of Flat Wall (in)15.6
Width of Section (in)18.0
Width of Flat Wall (in)15.6
Nominal Thickness (in)0.875

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)2630
Zx (in³)346
Sx (in³)292
rx (in)6.96
Iy (in⁴)2630
Zy (in³)346
Sy (in³)292
ry (in)6.96
J (in⁴)4220
C (in³)479

Full sortable table: Section properties table for this family
