HSS18x18x3/4 (HSS18x18x.75) – HSS Shapes - Square

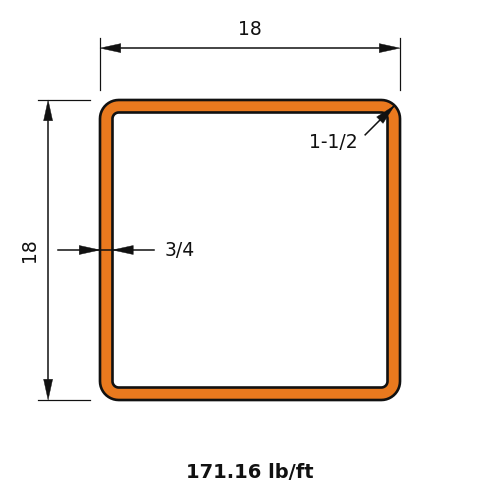

HSS18x18x3/4 is an 18 in (457 mm) square hollow section with a 3/4 in (19 mm) nominal wall, weighing 171.16 lb/ft (254.7 kg/m).

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)171.16
Depth of Section (in)18.0
Depth of Flat Wall (in)15.9
Width of Section (in)18.0
Width of Flat Wall (in)15.9
Nominal Thickness (in)0.75

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)2320
Zx (in³)302
Sx (in³)258
rx (in)7.02
Iy (in⁴)2320
Zy (in³)302
Sy (in³)258
ry (in)7.02
J (in⁴)3690
C (in³)417

Full sortable table: Section properties table for this family
