HSS18x18x5/8 (HSS18x18x.625) – HSS Shapes - Square

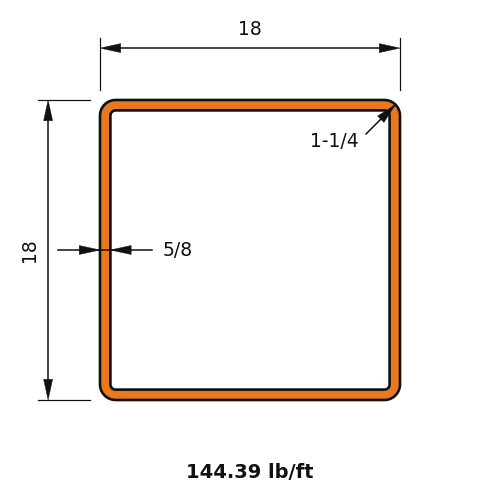

HSS18x18x5/8 is an 18 in (457 mm) square hollow section with a 5/8 in (16 mm) nominal wall, weighing 144.39 lb/ft (214.9 kg/m).
Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 144.39 |
| Depth of Section (in) | 18.0 |
| Depth of Flat Wall (in) | 16.3 |
| Width of Section (in) | 18.0 |
| Width of Flat Wall (in) | 16.3 |
| Nominal Thickness (in) | 0.625 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 1980 |
| Zx (in³) | 257 |
| Sx (in³) | 220 |
| rx (in) | 7.07 |
| Iy (in⁴) | 1980 |
| Zy (in³) | 257 |
| Sy (in³) | 220 |
| ry (in) | 7.07 |
| J (in⁴) | 3120 |
| C (in³) | 352 |
Full sortable table: Section properties table for this family
