HSS16x16x7/8 (HSS16x16x.875) – HSS Shapes - Square

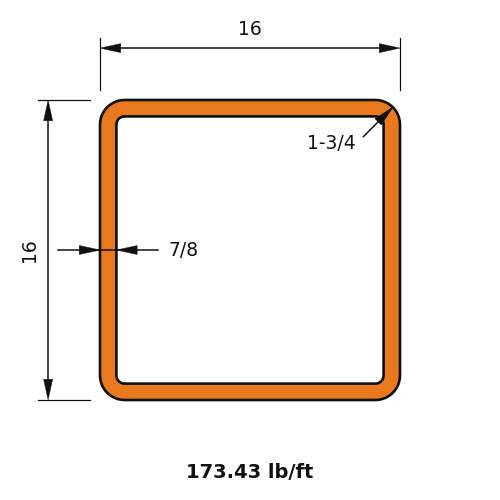

HSS16x16x7/8 is a 16 in (406 mm) square hollow section with a 7/8 in (22 mm) nominal wall, weighing 173.43 lb/ft (258.1 kg/m).

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)173.43
Depth of Section (in)16.0
Depth of Flat Wall (in)13.6
Width of Section (in)16.0
Width of Flat Wall (in)13.6
Nominal Thickness (in)0.875

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1800
Zx (in³)268
Sx (in³)225
rx (in)6.14
Iy (in⁴)1800
Zy (in³)268
Sy (in³)225
ry (in)6.14
J (in⁴)2920
C (in³)373

Full sortable table: Section properties table for this family
