HSS16x16x1 – HSS Shapes - Square

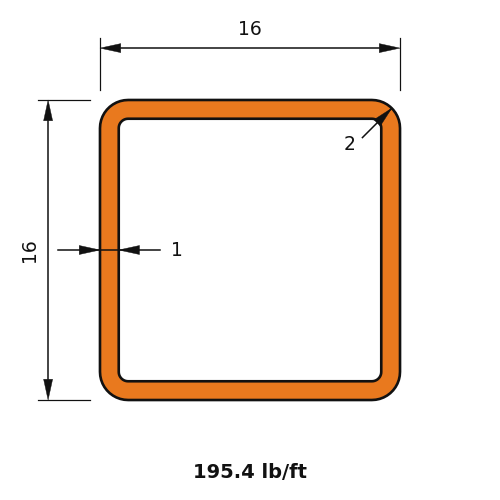

HSS16x16x1 is a 16 in (406 mm) square hollow section with a 1 in (25 mm) nominal wall, weighing 195.4 lb/ft (290.8 kg/m).

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)195.4
Depth of Section (in)16.0
Depth of Flat Wall (in)13.2
Width of Section (in)16.0
Width of Flat Wall (in)13.2
Nominal Thickness (in)1.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1990
Zx (in³)300
Sx (in³)249
rx (in)6.09
Iy (in⁴)1990
Zy (in³)300
Sy (in³)249
ry (in)6.09
J (in⁴)3270
C (in³)419

Full sortable table: Section properties table for this family
