HSS Shapes - Square - HSS16x16x.75

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

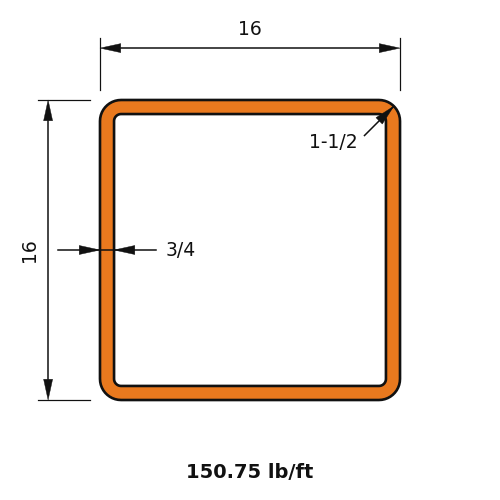

Dimensions

PropertyValue
Nominal Weight150.75
Depth of Section16.0
Depth of Flat Wall13.9
Width of Section16.0
Width of Flat Wall13.9
Nominal Thickness0.75

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix1590
Zx235
Sx199
rx6.19
Iy1590
Zy235
Sy199
ry6.19
J2560
C326

Full sortable table: Section properties table for this family
