HSS14x14x7/8 (HSS14x14x.875) – HSS Shapes - Square

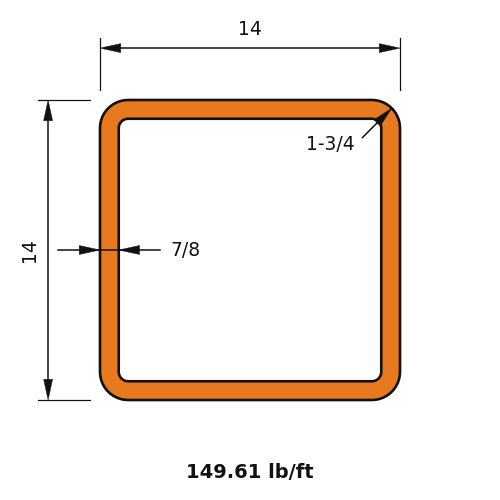

HSS14x14x7/8 is a 14 in (356 mm) square hollow section with a 7/8 in (22 mm) nominal wall, weighing 149.61 lb/ft (222.6 kg/m).

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)149.61
Depth of Section (in)14.0
Depth of Flat Wall (in)11.6
Width of Section (in)14.0
Width of Flat Wall (in)11.6
Nominal Thickness (in)0.875

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1170
Zx (in³)201
Sx (in³)167
rx (in)5.33
Iy (in⁴)1170
Zy (in³)201
Sy (in³)167
ry (in)5.33
J (in⁴)1910
C (in³)281

Full sortable table: Section properties table for this family
