HSS14x14x3/4 (HSS14x14x.75) – HSS Shapes - Square

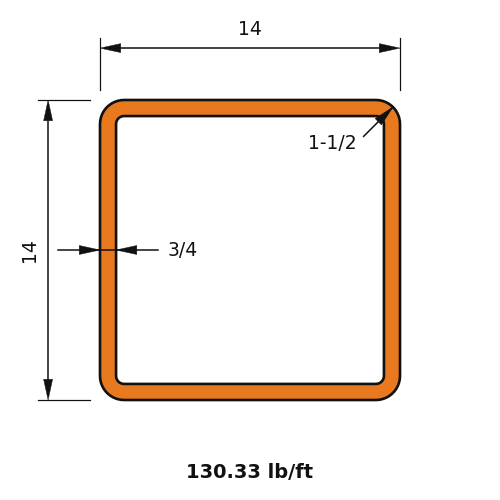

HSS14x14x3/4 is a 14 in (356 mm) square hollow section with a 3/4 in (19 mm) nominal wall, weighing 130.33 lb/ft (194.0 kg/m).

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)130.33
Depth of Section (in)14.0
Depth of Flat Wall (in)11.9
Width of Section (in)14.0
Width of Flat Wall (in)11.9
Nominal Thickness (in)0.75

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1040
Zx (in³)177
Sx (in³)149
rx (in)5.38
Iy (in⁴)1040
Zy (in³)177
Sy (in³)149
ry (in)5.38
J (in⁴)1680
C (in³)246

Full sortable table: Section properties table for this family
