HSS14x14x1 – HSS Shapes - Square

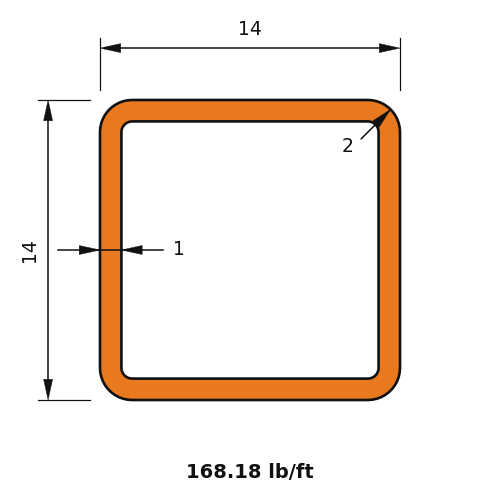

HSS14x14x1 is a 14 in (356 mm) square hollow section with a 1 in (25 mm) nominal wall, weighing 168.18 lb/ft (250.3 kg/m).

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)168.18
Depth of Section (in)14.0
Depth of Flat Wall (in)11.2
Width of Section (in)14.0
Width of Flat Wall (in)11.2
Nominal Thickness (in)1.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1290
Zx (in³)224
Sx (in³)184
rx (in)5.27
Iy (in⁴)1290
Zy (in³)224
Sy (in³)184
ry (in)5.27
J (in⁴)2130
C (in³)315

Full sortable table: Section properties table for this family
