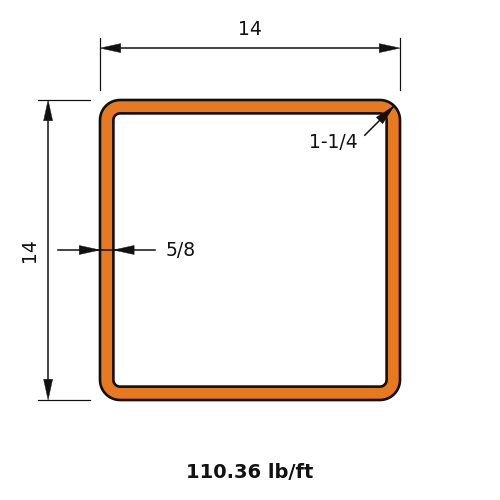

HSS Shapes - Square - HSS14x14x.625

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight110.36
Depth of Section14.0
Depth of Flat Wall12.3
Width of Section14.0
Width of Flat Wall12.3
Nominal Thickness0.625

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix897
Zx151
Sx128
rx5.44
Iy897
Zy151
Sy128
ry5.44
J1430
C208

Full sortable table: Section properties table for this family
