HSS1-1/2x1-1/2x3/16 (HSS1.5x1.5x.1875) – HSS Shapes - Square

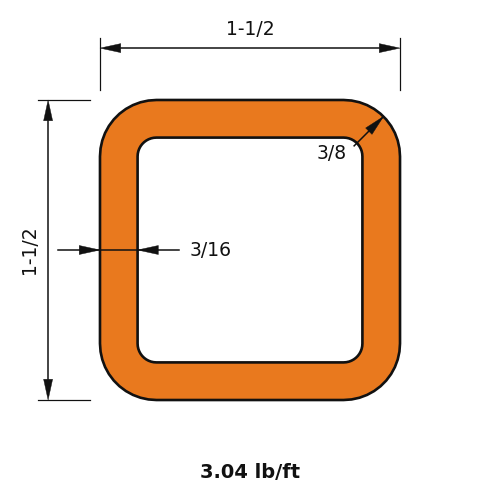

HSS1-1/2x1-1/2x3/16 is a 1.5 in (38 mm) square hollow section with a 3/16 in (5 mm) nominal wall, weighing 3.04 lb/ft (4.5 kg/m).

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)3.04
Depth of Section (in)1.5
Depth of Flat Wall (in)0.978
Width of Section (in)1.5
Width of Flat Wall (in)0.978
Nominal Thickness (in)0.1875

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)0.236
Zx (in³)0.406
Sx (in³)0.315
rx (in)0.528
Iy (in⁴)0.236
Zy (in³)0.406
Sy (in³)0.315
ry (in)0.528
J (in⁴)0.414
C (in³)0.592

Full sortable table: Section properties table for this family
